1. Advanced structure, reasonable design.
2. Reliable performance, easy operation, high working efficiency.
3. ZL50D is a continuous air brake clutch.
4. ZL50F is a cut-off air brake clutch.
5. ZL60F is a cut-off air brake clutch.
6. ZL mechanical hydraulic transmission is widely used in power transmission of four-wheel drive engineering machinery (loaders and loading and unloading machinery) with frequent load and speed changes.

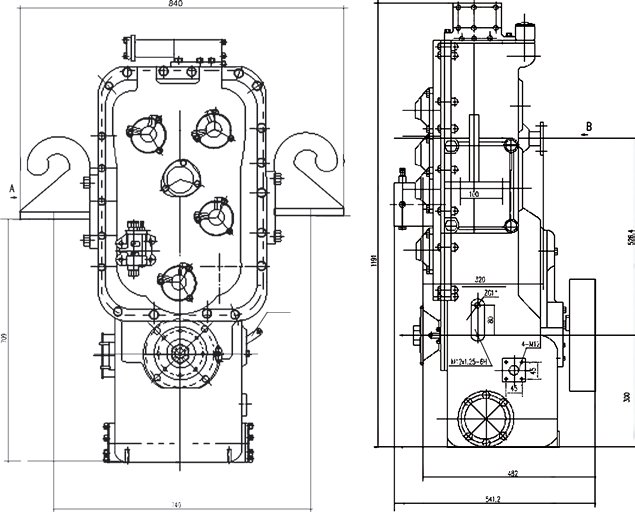

Gearbox dimensions
Technical parameters
Model | ZL50D | ZL50F | ZL60F |
Max. Input power | 165KW | 165KW | 176KW |
Max. Input Torque | 779N·m | 779N·m | 843N·m |
Max. Input speed | 2500r·min-1 | 2500r·min-1 | 2500r·min-1 |
Gear Box type Fixed axis、Often meshing、hydraulic pressure、Fork Shift
Gearbox gear ratio | Stalls Number Four stall progress, Back four stalls | |||
Stalls | F | R | I | |
I stall Forward | Z8·Z3·Z10·Z12 Z7·Z4·Z9·Z11 | Z6·Z3·Z10·Z12 Z7·Z5·Z9·Z11 | 3.488 | |
II stall Forward | Z8·Z2·Z12 Z7·Z4·Z11 | Z6·Z2·Z12 Z7·Z5·Z11 | 1.806 | |
III stall Forward | Z8·Z3·Z1 Z7·Z4·Z9 | Z6·Z3·Z1 Z7·Z9·Z9 | 1.126 | |
IV stall Forward | Z8·Z2·Z1 Z7·Z4·Z9 | Z6·Z2·Z1 Z7·Z4·Z10 | 0.583 | |
Gearbox Oil 6# Hydraulic pressure transmission oil or 46#Antiwear Hydraulic pressure oil
Working Pressure | 1.35-1.5Mpa | 1.35-1.5Mpa | 1.35-1.5Mpa |
Oil strainer permitted oil temperatur | 95-100℃ | 95-100℃ | 95-100℃ |
Brake Clutch Operation pressure and type | >0.5Mpa pneumatic brake clutch | >0.5Mpa closed brake Clutch | >0.5Mpa closed brake Clutch |
