ZL15S/YJ280 Hydraulic transmission/torque converter

ZL15S/YJ280 Hydraulic transmission/torque converter

Application:

Motor
Electric Cars
Motorcycle
Machinery
Marine
Agricultural Machinery
Car

Function:

1. The gearbox type is fixed-axis, constant mesh, hydraulic shifting, and has small shifting impact.

2. The output shaft is divided into two, which can realize the conversion between four-wheel drive and two-wheel drive, matching large and small wheels, and is used for loaders and excavators at both ends.

3. The front end of the gearbox is equipped with a brake for parking brake.

Consult Now

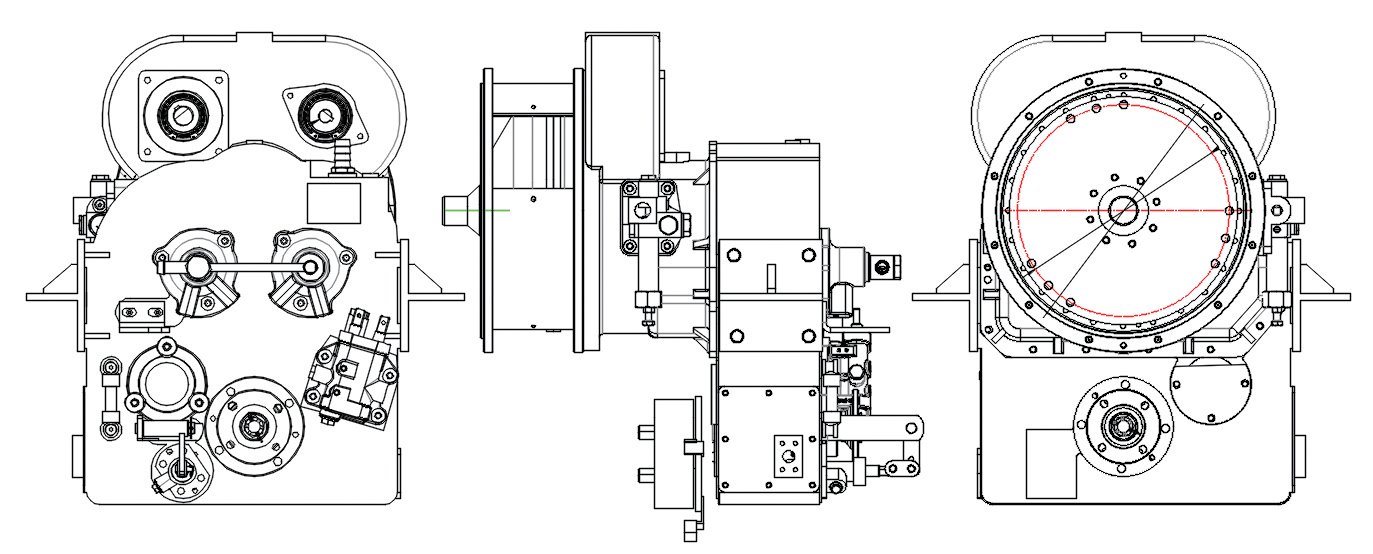

Gearbox dimensions
Technical parameters
Consult Now
Related Products

Gearbox dimensions

Technical parameters

Engine input power	55-75KW
Engine input speed	1800-2400 r/min
Transmission ratio of each gear	F Ⅰ=2.57	F Ⅰ=5.15
	F Ⅰ=1.32	F Ⅰ=2.646
	FⅢ=0.96	FⅢ=1.20
	FⅣ=0.49	FⅣ=0.615
	R Ⅰ=2.51	R Ⅰ=5.26
	RⅡ=1.35	RⅡ=2.71
	RⅢ=0.98	RⅢ=1.17
	RⅣ=0.50	RⅣ=0.63
Working oil	6#/8#Hydraulic transmission oil
Control valve oil pressure	1.2-1.5 MPa
Lubrication cooling oil pressure	0.15-0.3 MPa
Operating temperature	80-110℃
