1. The gearbox type is fixed-axis, constant mesh, hydraulic shifting, and has small shifting impact.
2. Matching YJ315 torque converter to transmit greater torque.
3. The front end of the gearbox is equipped with a brake for parking brake.

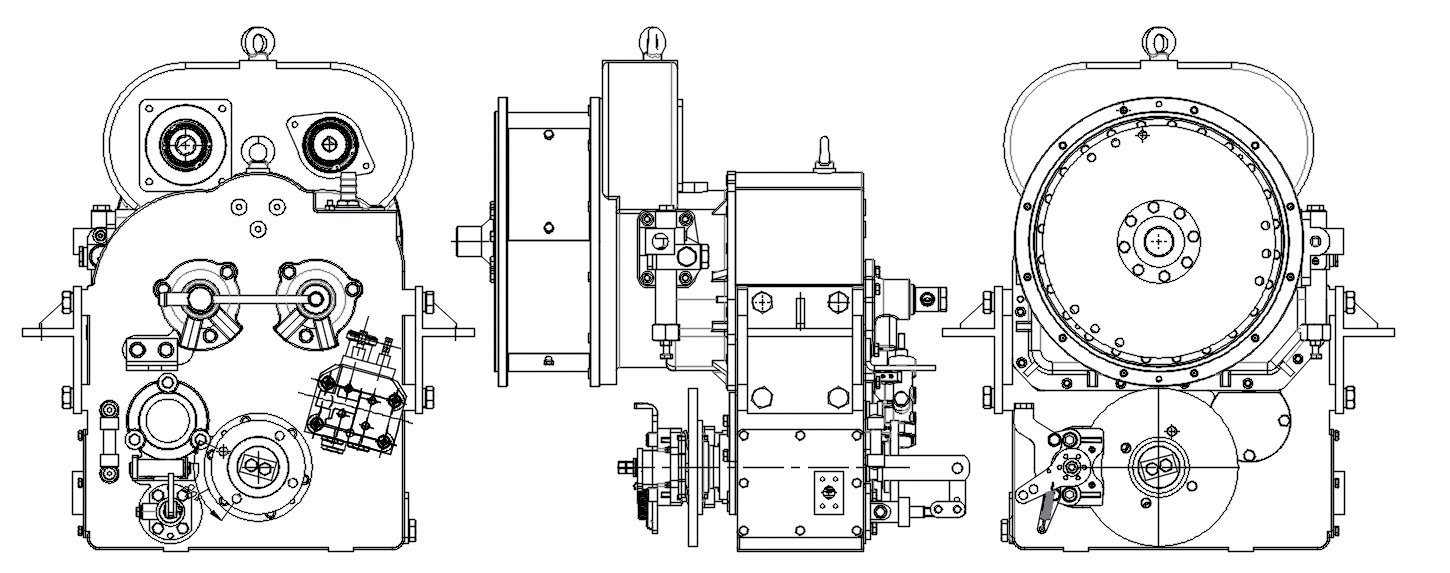

Gearbox dimensions
Technical parameters
Engine input power | 65-90KW | |
Engine input speed | 1800-2400 r/min | |
Transmission ratio of each gear | F Ⅰ=6.68 | R Ⅰ=6.85 |
FⅡ=3.63 | RⅡ=3.72 | |
FⅢ=1.67 | RⅢ=1.71 | |
FⅣ=0.91 | RⅣ=0.93 | |
Working oil | 6#/8#Hydraulic transmission oil | |
Control valve oil pressure | 1.7-1.8 MPa | |
Lubrication cooling oil pressure | 0.15-0.3 MPa | |
Operating temperature | 80-110℃ | |
