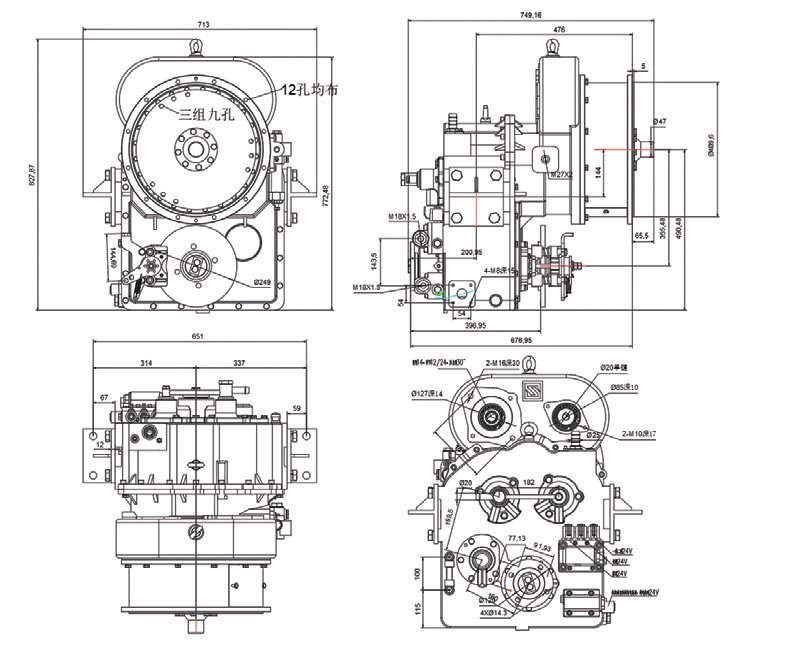

ZL30Y four wheels two busy transmission

Rated speed

2400r/min

F1   5.38

R1   5.51

F2   2.93

R2   3.0

F3   1.34

R3   1.38

F4   0.73

R4   0.75

Working oil pressure

No. 8 hydraulic transmission oil

Torque Converter

Control oil pressure

1.7~1.9MPa

Model

YJ315

Circulation circle diameter

Φ315mm

Gear Ratio

48/47=1.02

Torque relief pressure

0.6MPa-0.7MPa

Nominal torque at zero speed

57.5MBg0(N.m)

Zero speed torque coefficient

K0=3 1

Rated input speed(rpm)

2200

Highest efficiencymax

0.857

Nominal torque under high efficiency condition

Mbgo-60.5N.m
