1. Advanced structure, reasonable design
2. Reliable performance, easy operation, high working efficiency
3. ZL mechanical hydraulic transmission is widely used in power transmission of four-wheel drive engineering machinery (loaders and loading and unloading machinery) with frequent load and speed changes.

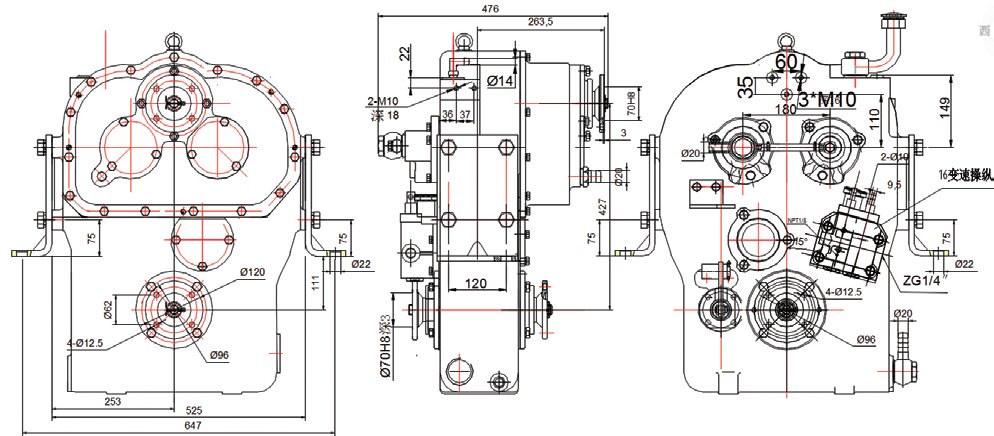

Gearbox dimensions
Technical parameters
Engine input power | 55-75KW | |
Engine input speed | 1800-2400 r/min | |
Transmission ratio of each gear | F Ⅰ=2.57 | R Ⅰ=2.51 |
FⅡ=1.32 | RⅡ=1.35 | |
FⅢ=0.96 | RⅢ=0.98 | |
FⅣ=0.49 | RⅣ=0.50 | |
Working oil | 6#/8#Hydraulic transmission oil | |
Control valve oil pressure | 1.2-1.5 MPa | |
Lubrication cooling oil pressure | 0.15-0.3 MPa | |
Operating temperature | 80-110℃ | |
