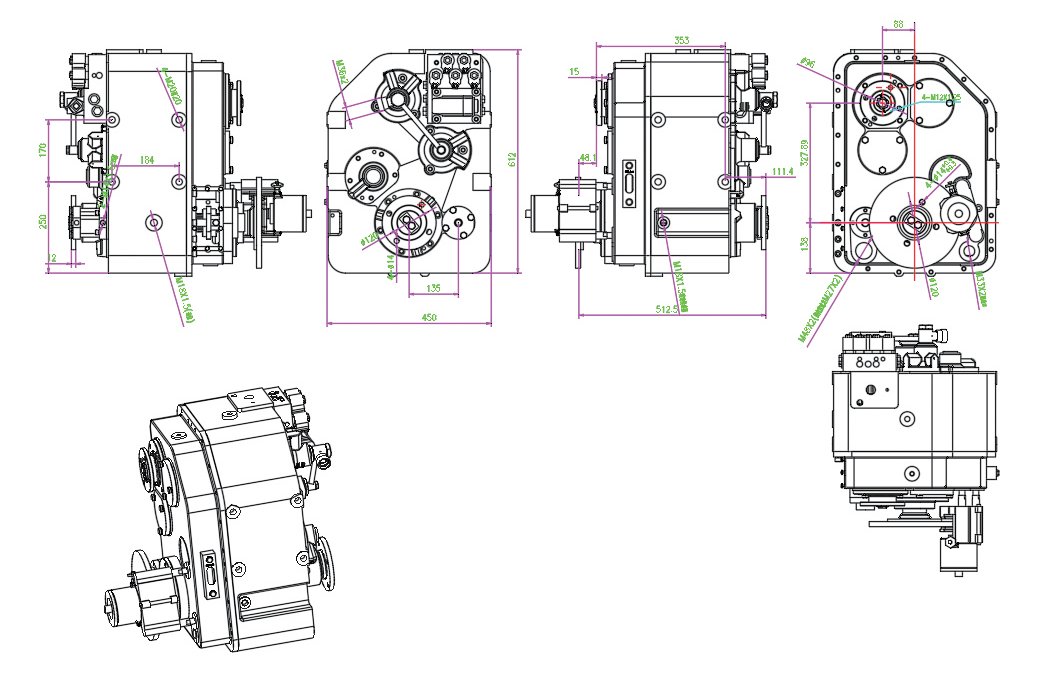

Gearbox dimensions
Technical parameters
Maximum input power | 88KW |
Rated speed | 2400 r/min |
F1 4.06 | R1 4.16 |
F2 2.21 | R2 2.26 |
F3 1.01 | R3 1.04 |
F4 0.55 | R4 0.56 |
Working oil | No. 8 hydraulic transmission oil |
Control oil pressure | 1.7~1.9MPa |
