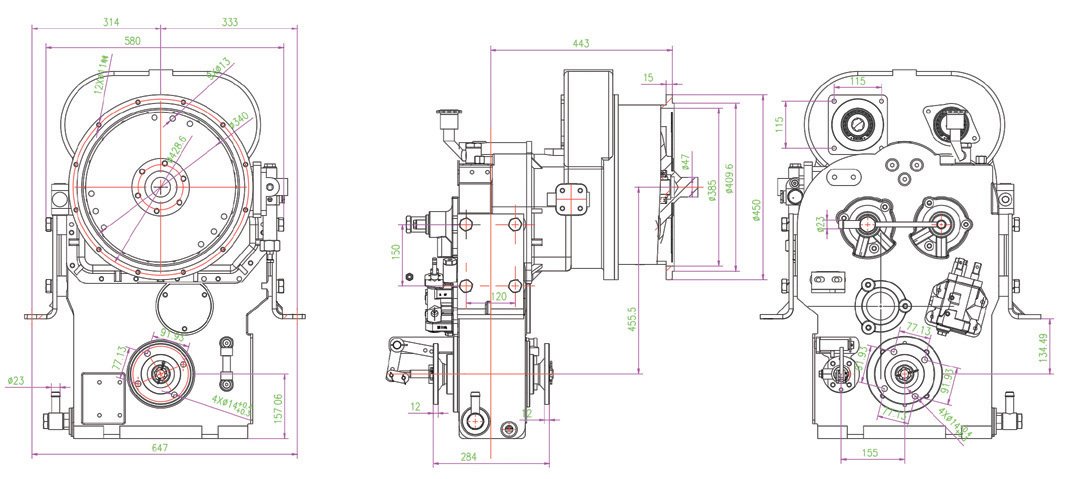

Gearbox dimensions
Technical parameters
F1 | 17.55 |
F2 | 8.16 |
F3 | 2.87 |
F4 | 1.34 |
R1 | 17.93 |
R2 | 8.34 |
R3 | 2.94 |
R4 | 1.37 |
Working oil | No. 8 hydraulic transmission oil |
Maximum input power | 80kw |
Rated speed | 2400r/min |
Control oil pressure | 1.7-1.9MPa |
