YJ375A Hydraulic Converter

YJ375A
YJ375A
YJ375A Hydraulic Converter
Product Description:

YJ375A hydraulic torque converter is developed by using the advanced manufacturing technology of Komatsu, Japan. In the field of production technology, it is the first in China to use the world's advanced technology such as coated sand with low resin sand content, hot core box and metal mold impeller casting. Its structure is advanced and reasonable, and its main technical performance indicators are at the leading level in China, with reliable quality.

Application:
  • Motor

  • Electric Cars

  • Motorcycle

  • Machinery

  • Marine

  • Agricultural Machinery

  • Car

Function:

The YJ375A torque converter is a single-stage, single-phase centripetal turbine torque converter with advanced structure, reliable operation, easy matching with the host, simple use and maintenance, etc. In addition to being used for ZL50 loaders, this type of torque converter can also be used for cranes and other engineering machinery with a slight improvement in structure.

Advantages of hydraulic transmission over mechanical transmission

1. Due to the automatic torque conversion of the torque converter, the working machine has good adaptability to external sudden loads, avoiding the engine from stalling due to the sudden increase of external loads, and automatically meeting the requirements of the working machine's traction conditions.

2. Since the working medium is liquid, it can play a role in vibration reduction and vibration isolation, and improve the service life of the working machine. According to statistics, the engine life can be increased by 47%, and the gearbox life can be increased by 400%.

3. It can improve the vehicle's passability and adaptability.

4. It can simplify the vehicle's operating system.

Product Parameters

Project

Numeric

Unit

Limit input torque

800

N.m

Rated Power

154

kw

Rated speed

2200

rpm

Nominal torque at zero speed

165

N.m

Nominal torque under high efficiency condition

155

N.m

Zero speed torque coefficient

3.1


Highest efficiency

0.875


High efficiency area

2.49


Weight

220

kg

Dimensions

461×610×647

m m

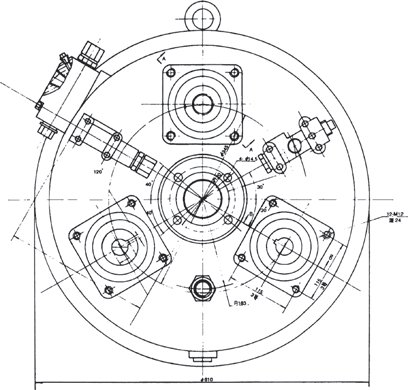

Diagram
